Ksoloti Core

Version Notice: These boards are Core v0.6 that do not contain any MIDI circuitry. The Core v0.7 has circuitry for MIDI In/Out but will require soldering jacks onto the Core it self. The K-Control Mini has all the components for MIDI In/Out already and will work with any Core of v0.5+. As such we are discounting the v0.6 Cores!

Ksoloti is an environment for generating and processing digital audio. It can be a programmable virtual modular synthesizer, polysynth, drone box, sequencer, chord generator, multi effect, sample player, looper, granular sampler, MIDI generator/processor, CV or trigger generator, anything in between, and more.

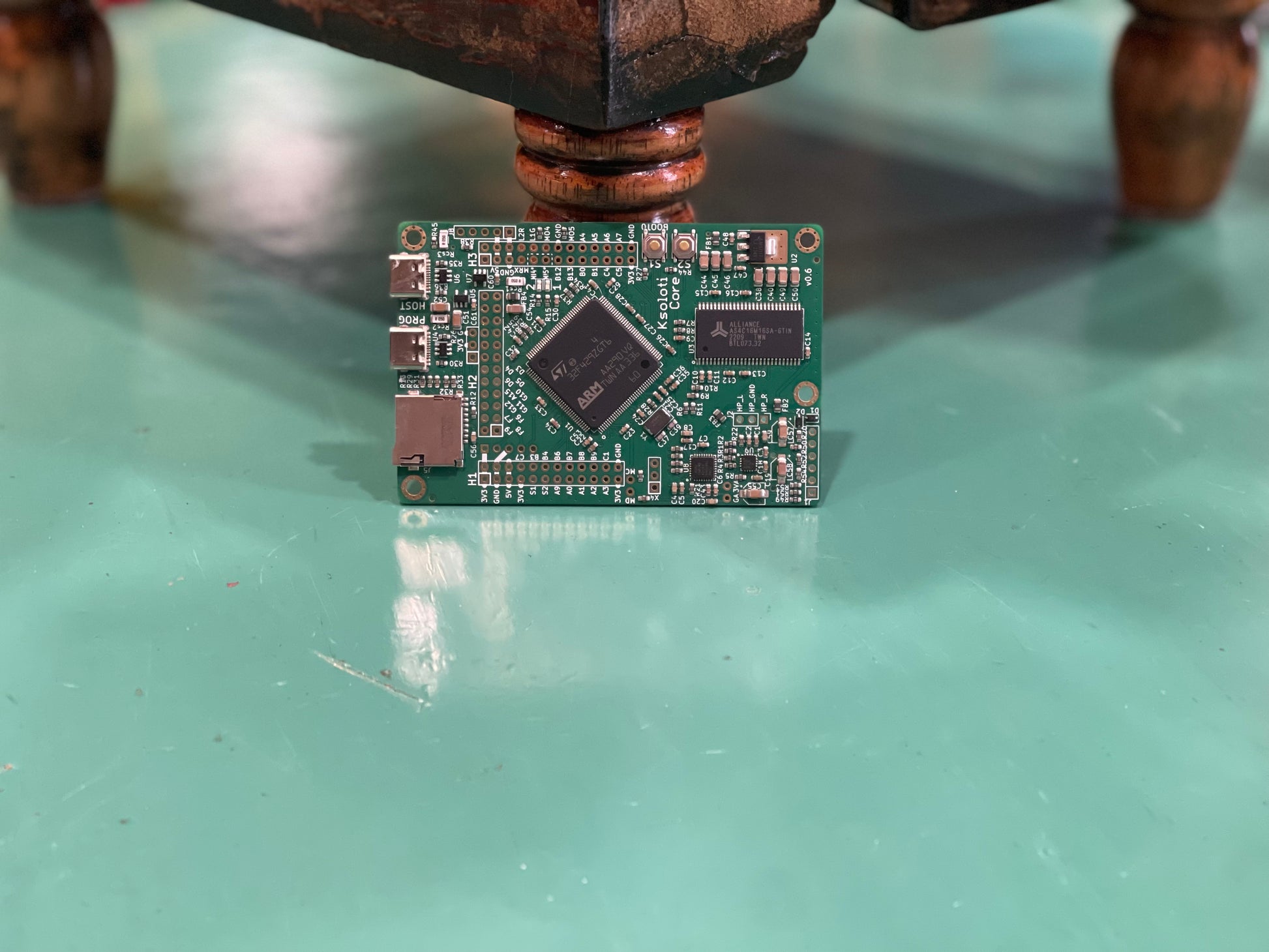

The Ksoloti Core is a rework of the discontinued Axoloti Core board. In short, Ksoloti aims for maximum compatibility with the original Axoloti, but with some layout changes and added features.

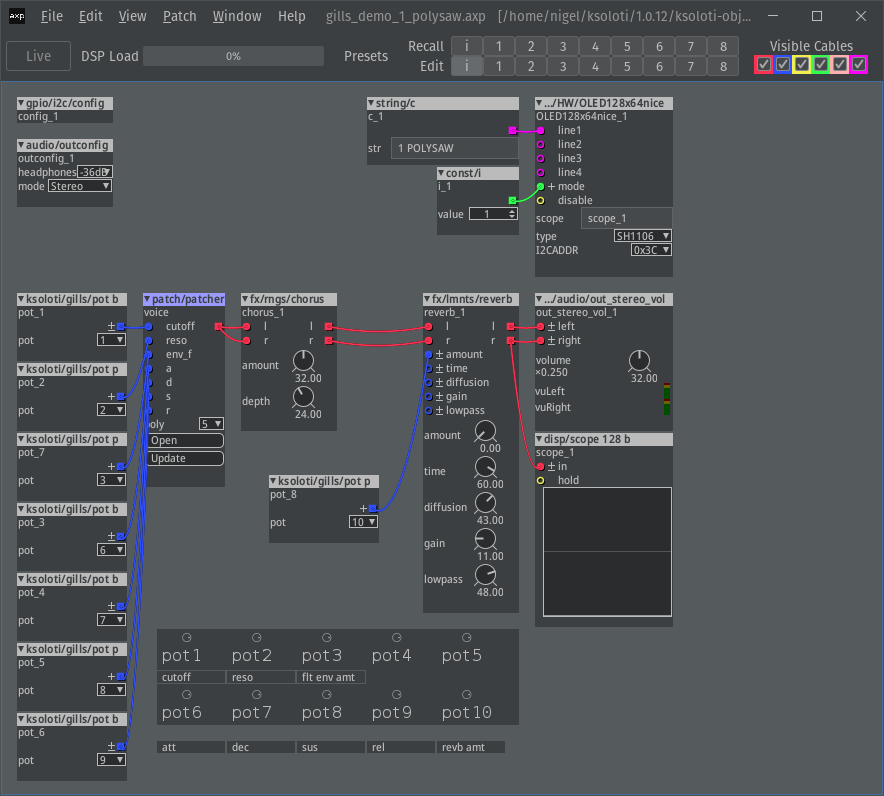

Using the Patcher software on your computer, you create your own sound patches by placing and connecting sound objects, or explore patches other users shared. You can edit any existing patches and even objects, or write entirely new ones from scratch. When you are satisfied with your patch, you can upload it to the Ksoloti Core's internal memory – or save a collection of patches on SD card – so you can play it without your computer connected.

The fun really starts when you connect pots, buttons, LEDs or displays, sensors and more to control your patches and make Ksoloti a tactile and highly playable hardware instrument.

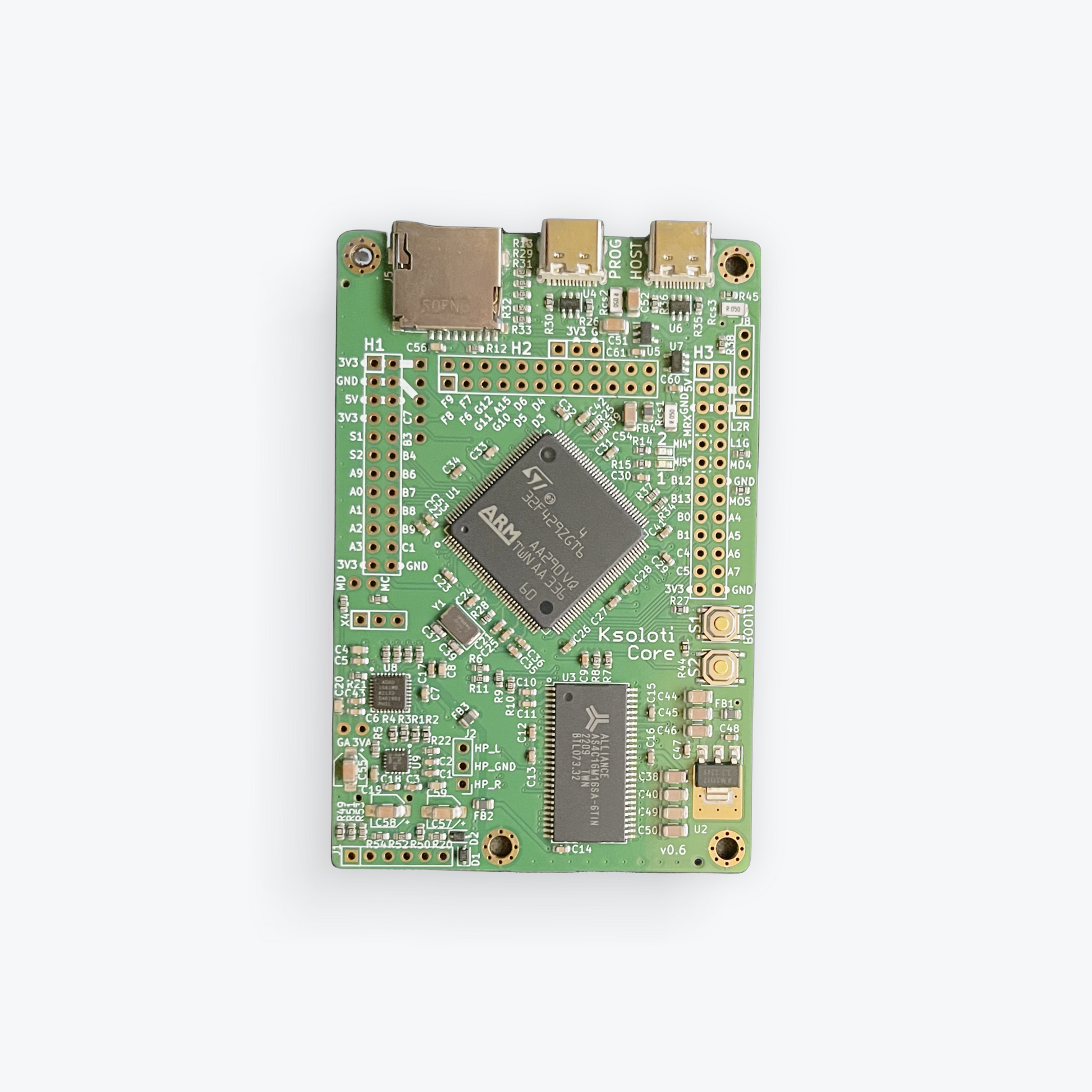

All the SMD parts shown on the PCB come already already pre-soldered
